Design Process

Specification Sheet

Brainstorming

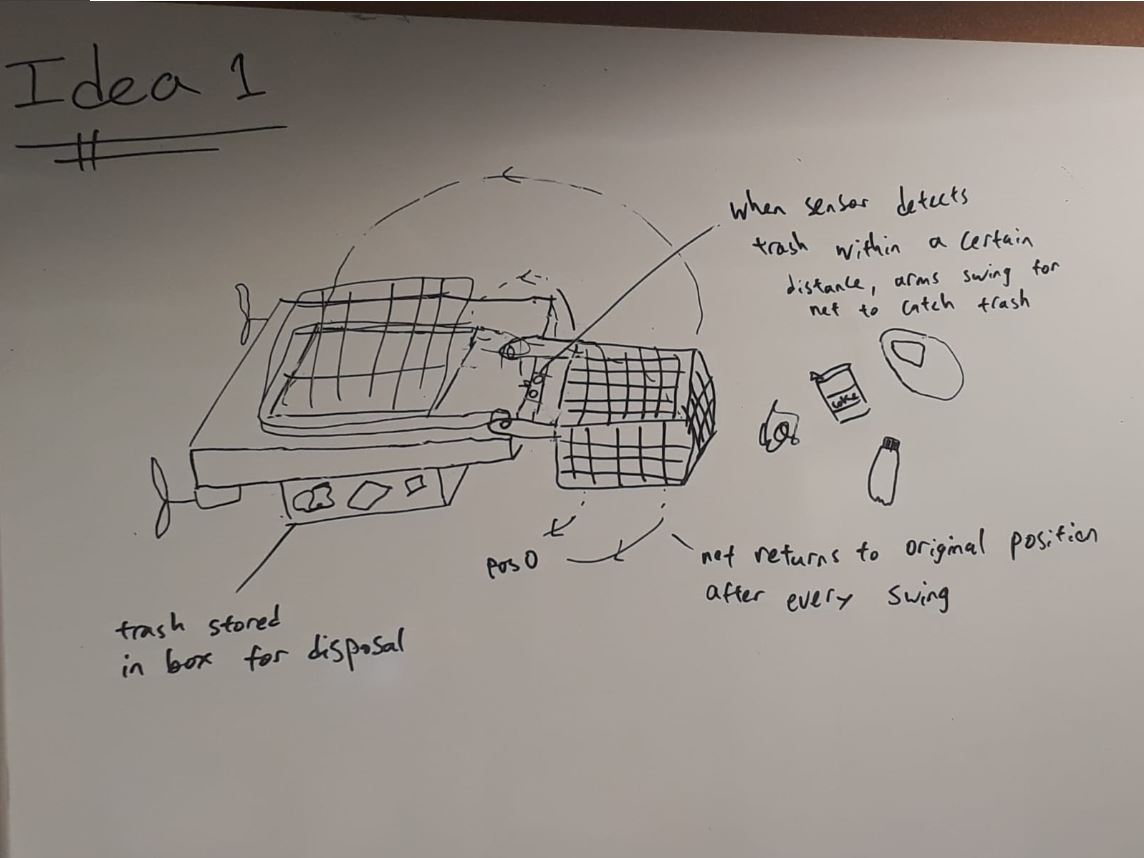

Idea 1: Ocean Trash Collector

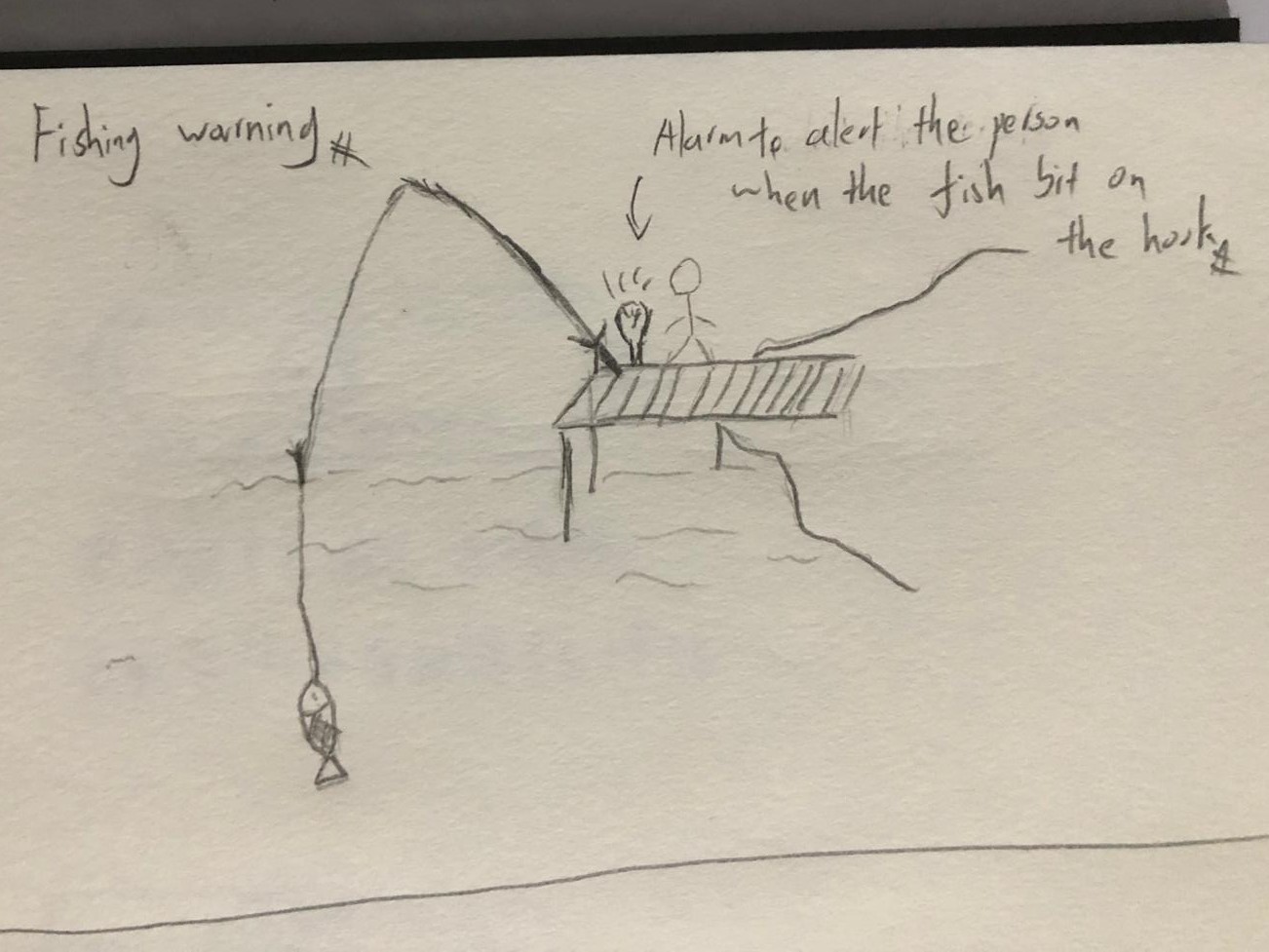

Idea 2: Fish Bite Detector

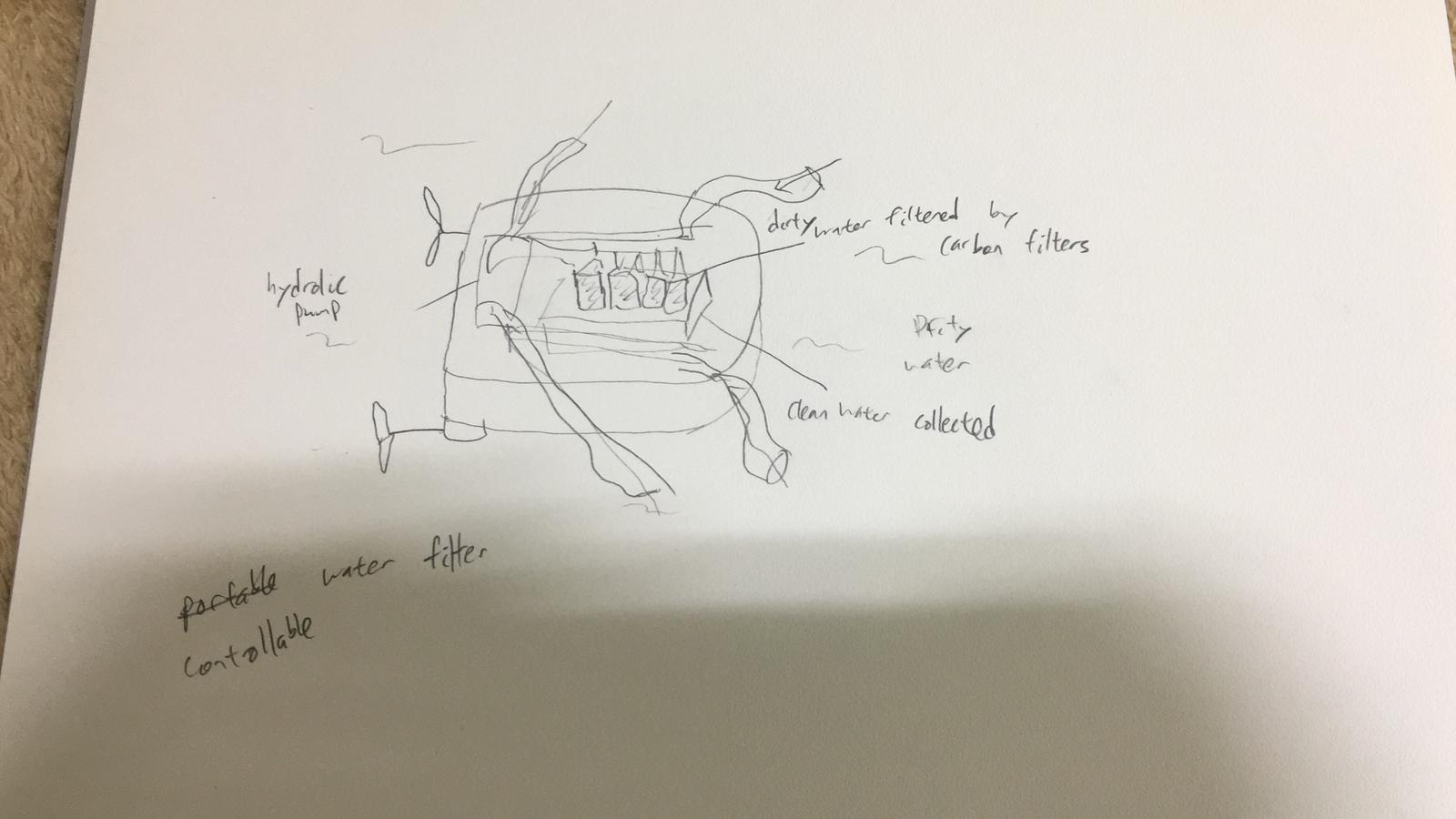

Idea 3: Moblie Carbon Filter

Idea 4: Water Jet Dish Washer

Idea 5: Fish Detector and Bait Dispenser

Idea 5 was choosen for our prototype, here is our ideation process for the choosen idea:

Ideation

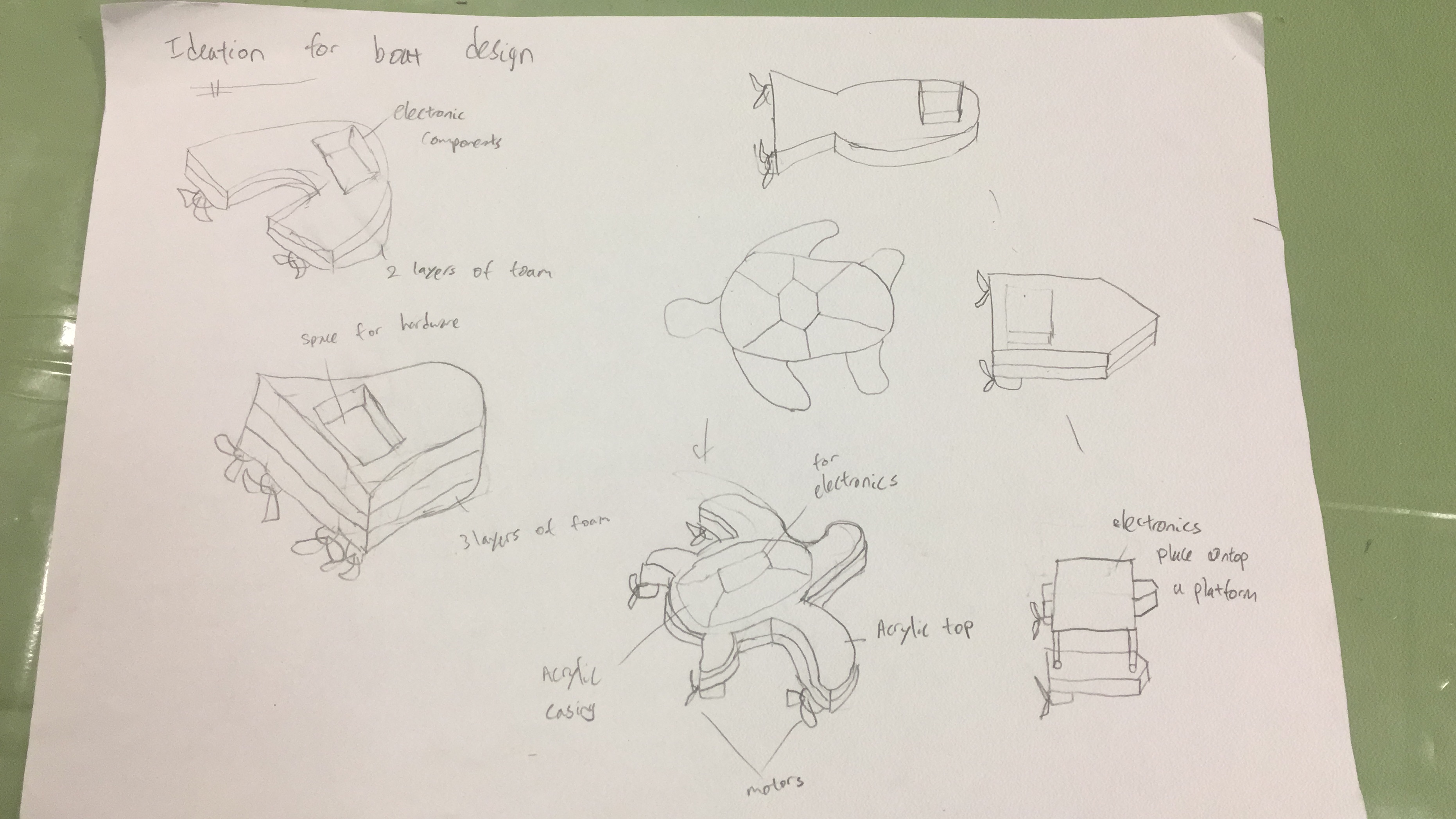

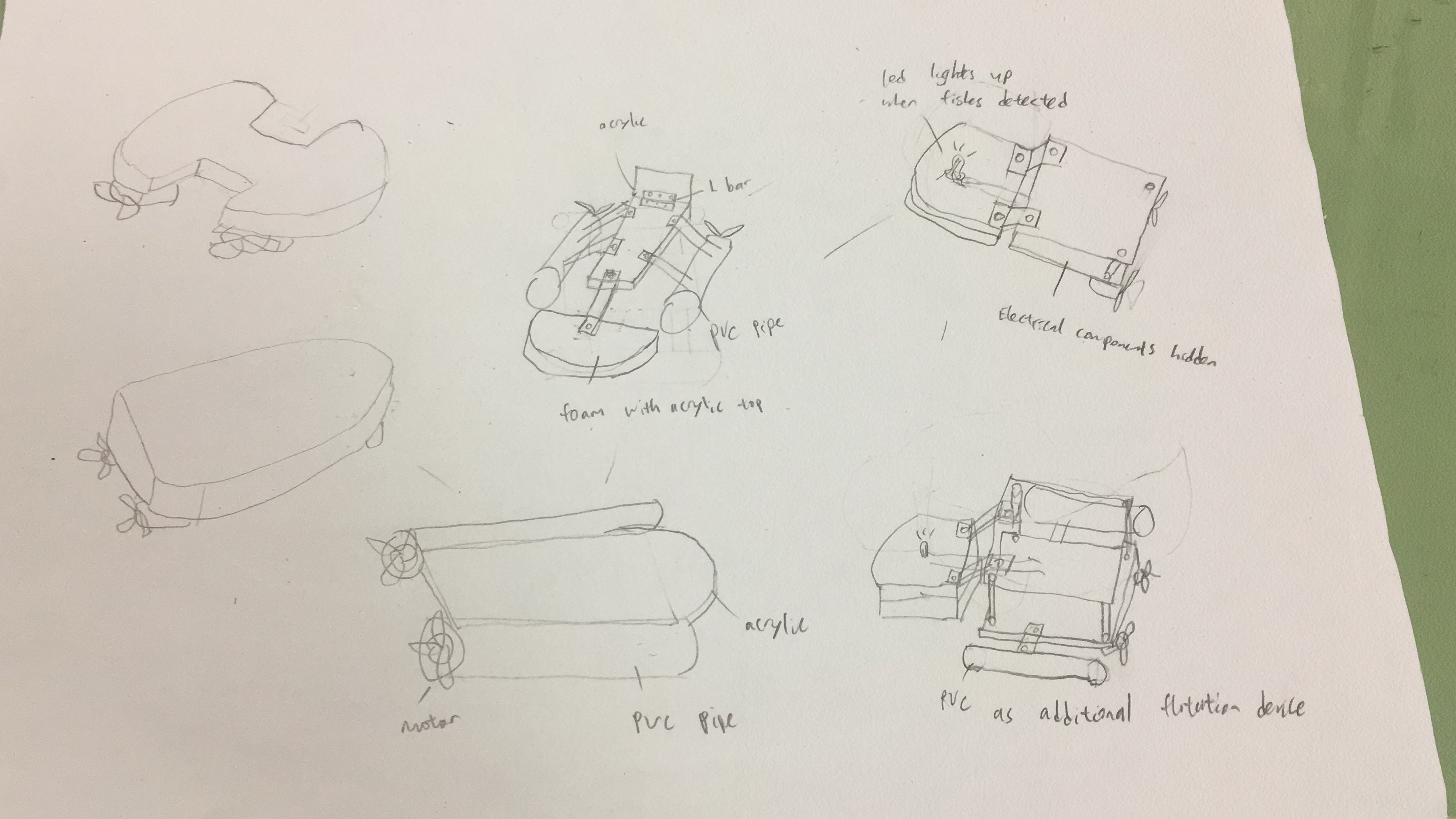

Ideation sketch 1:

Ideation sketch 2:

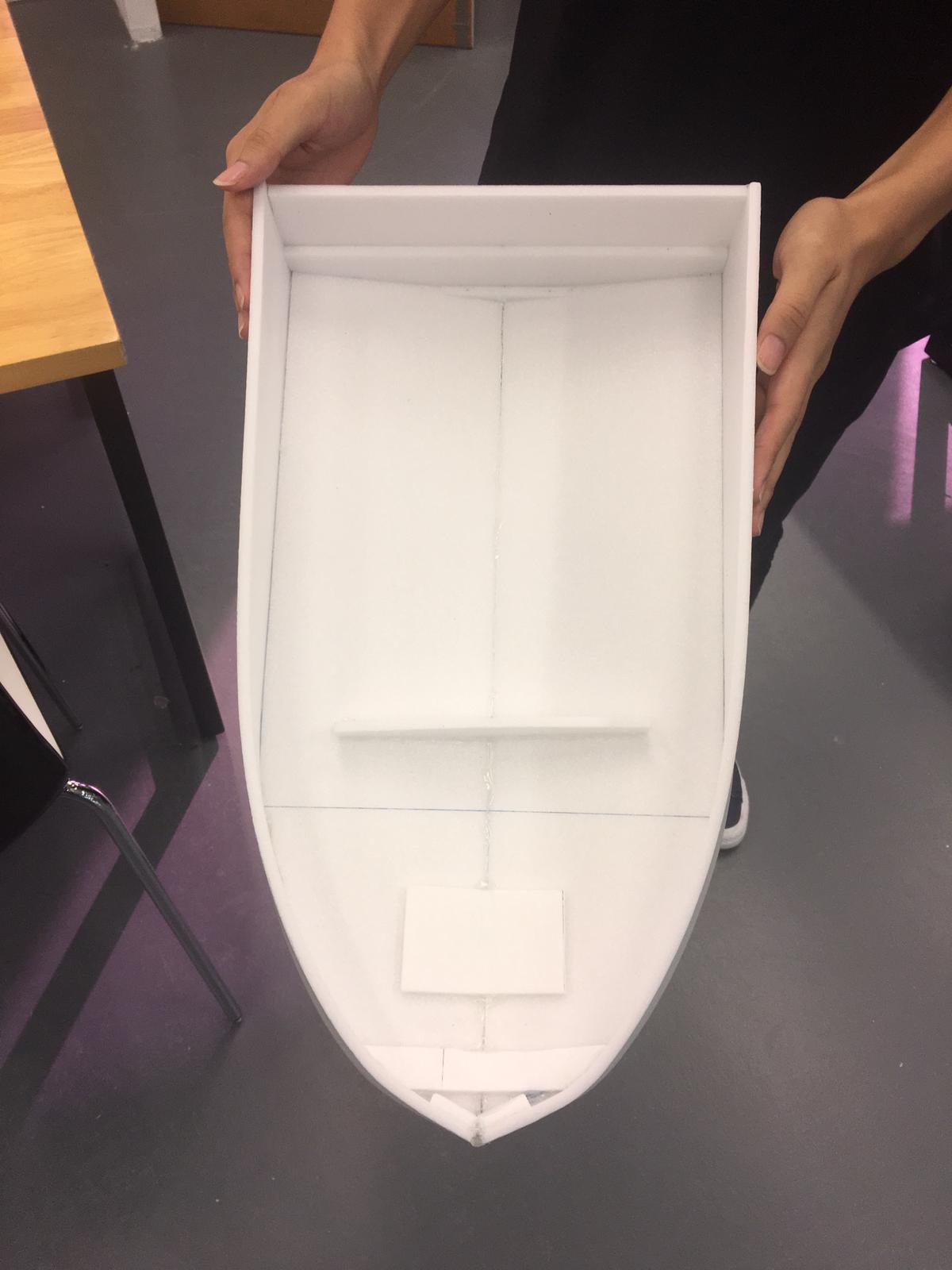

Prototyping

Mechanical Design Concepts

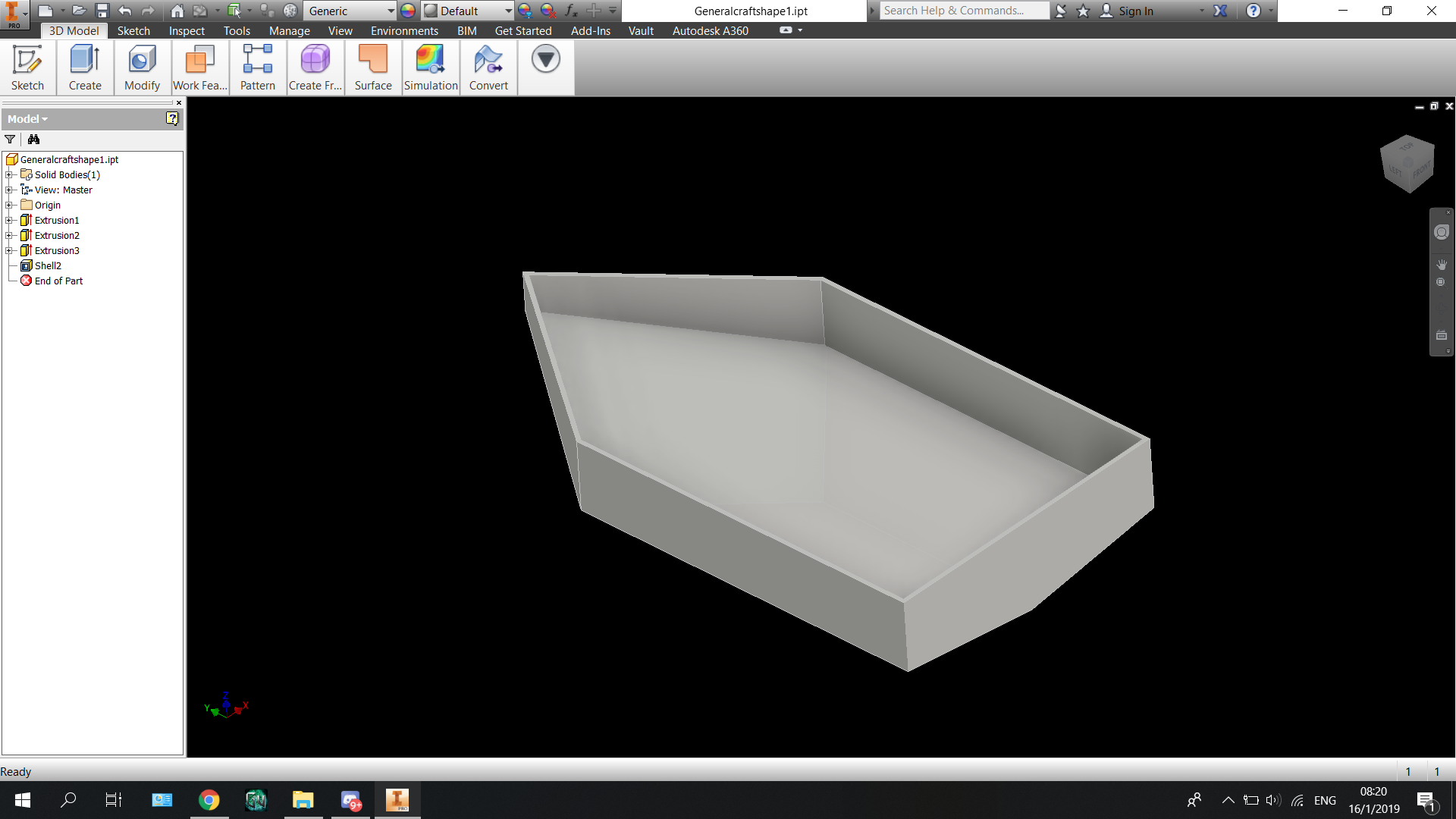

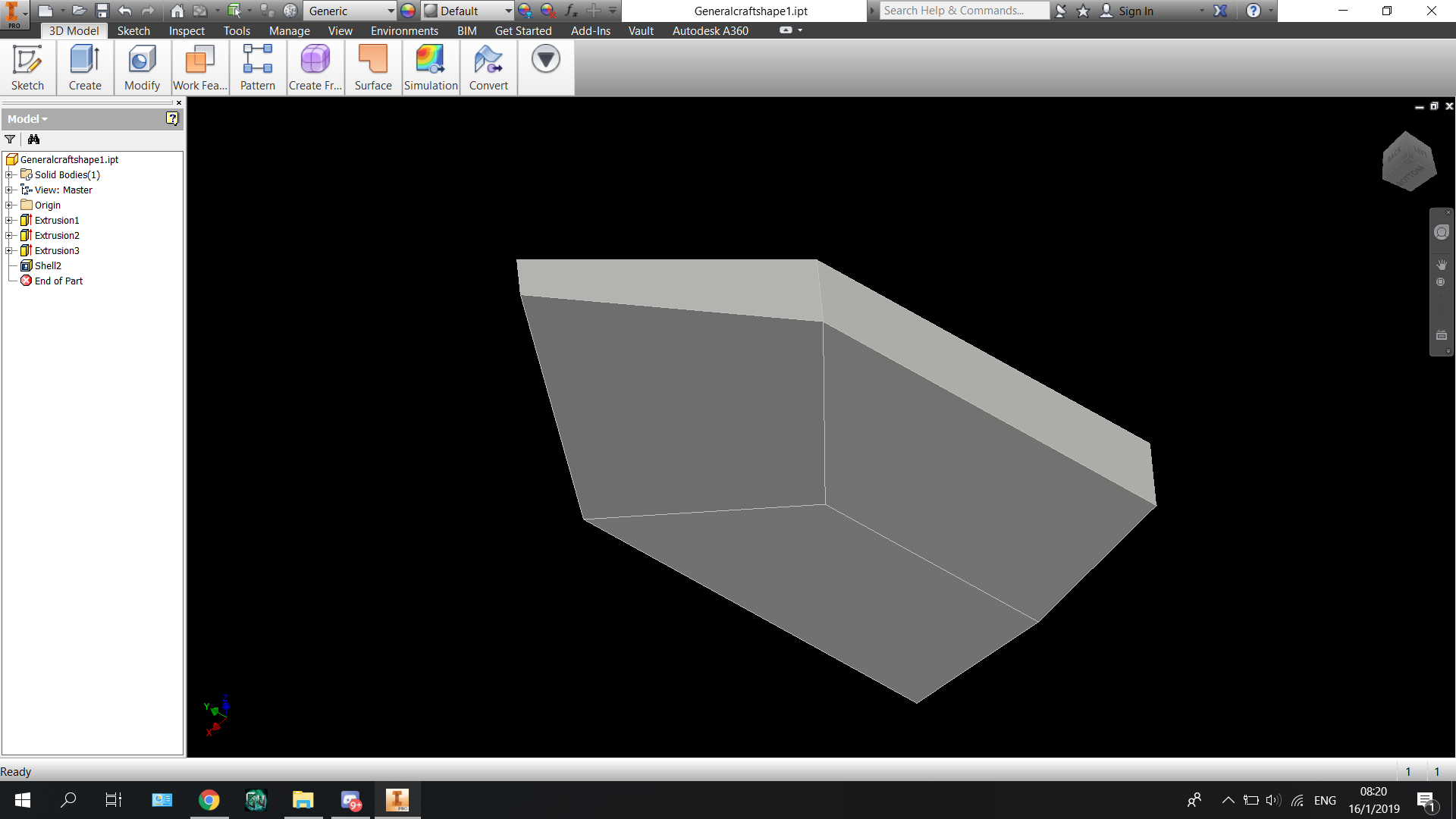

Draft 1

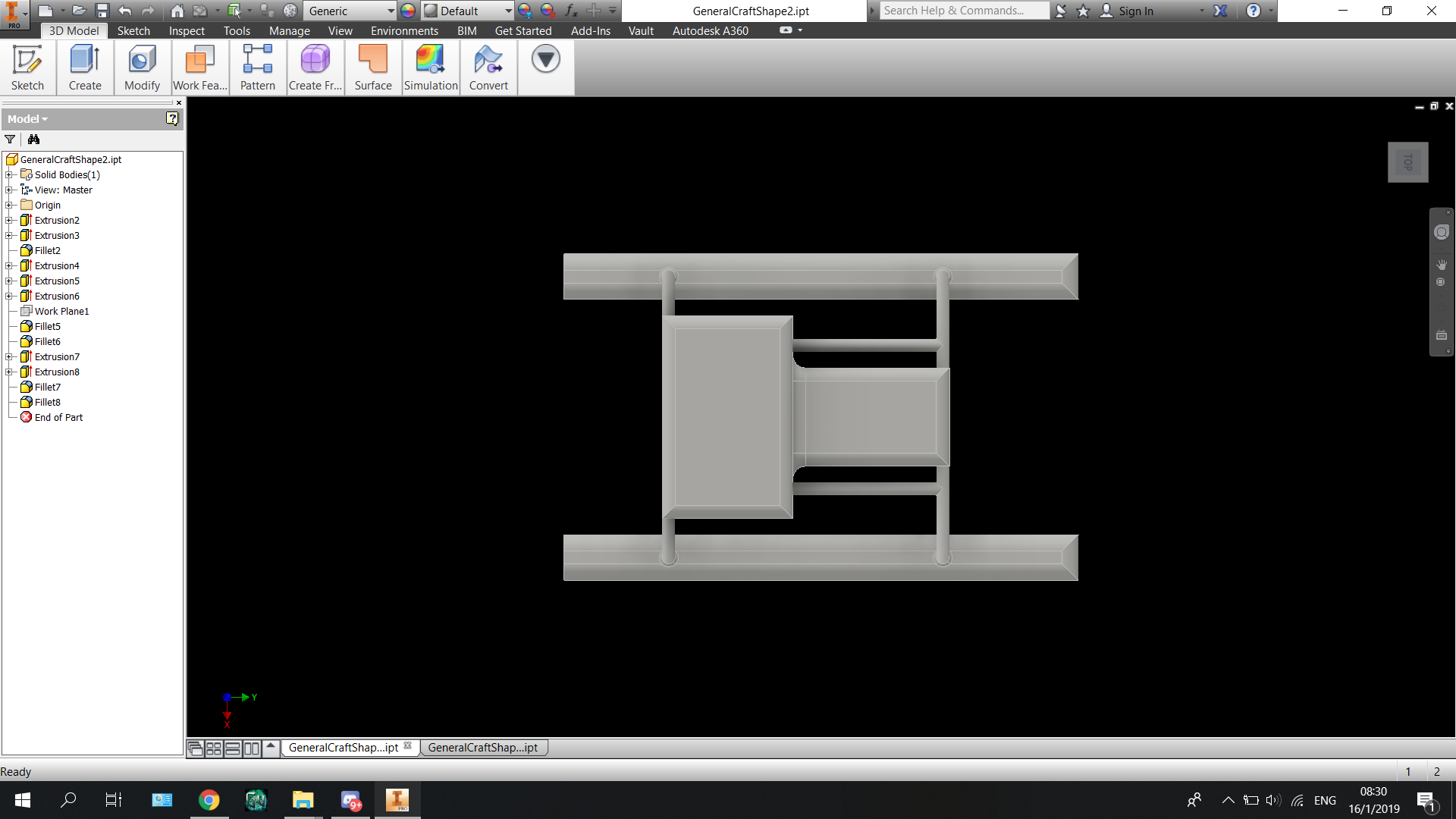

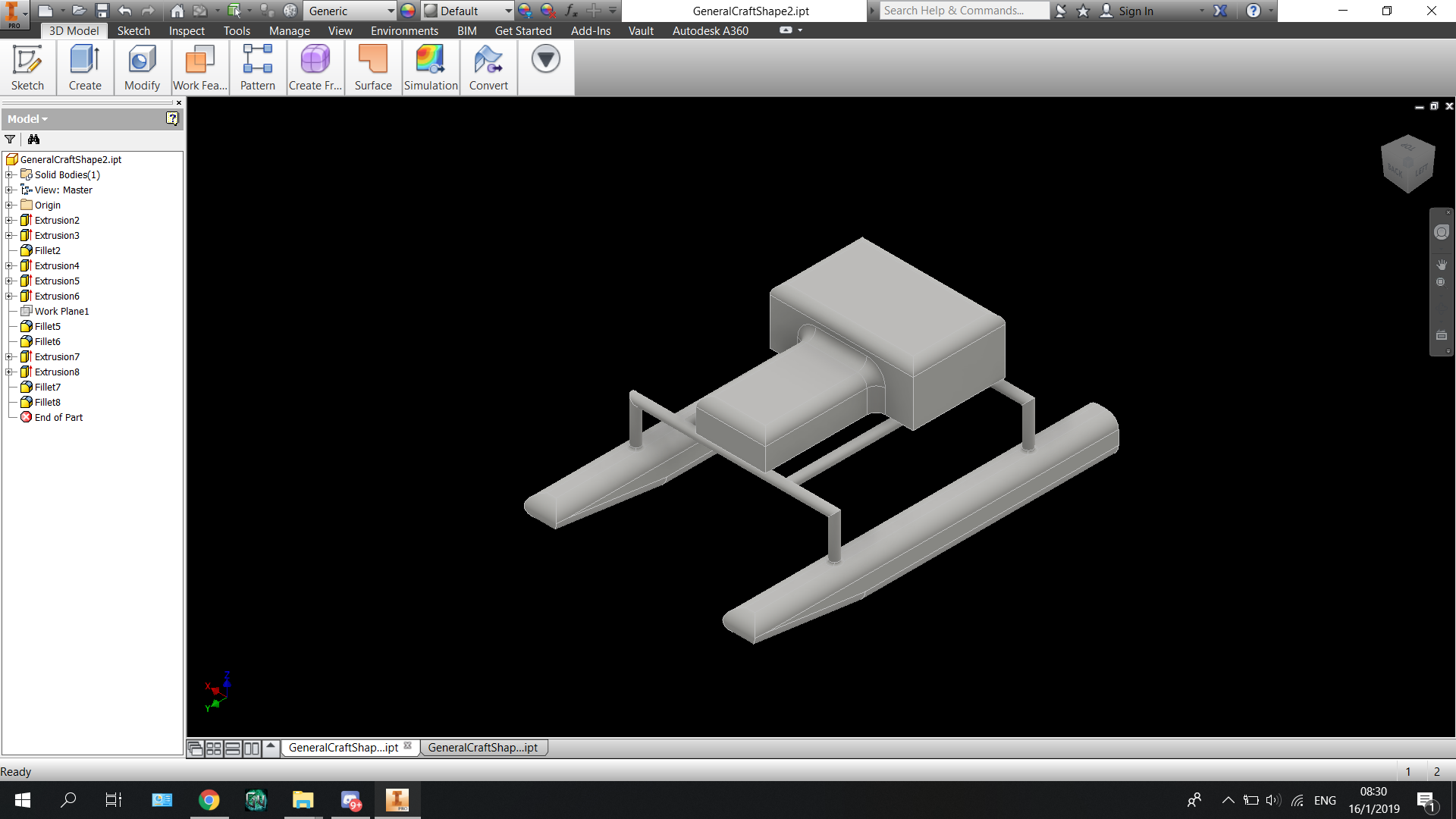

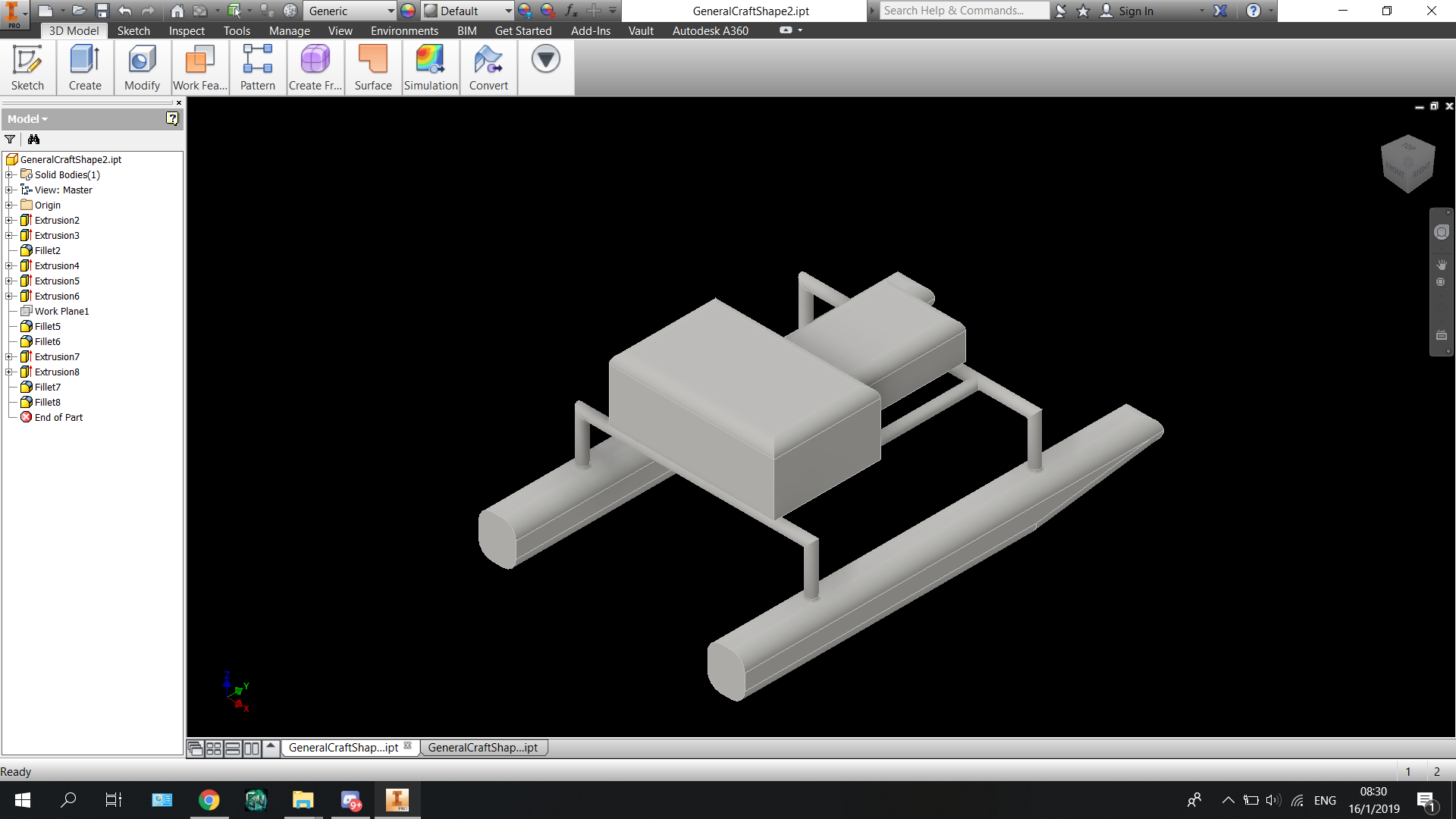

Draft 2

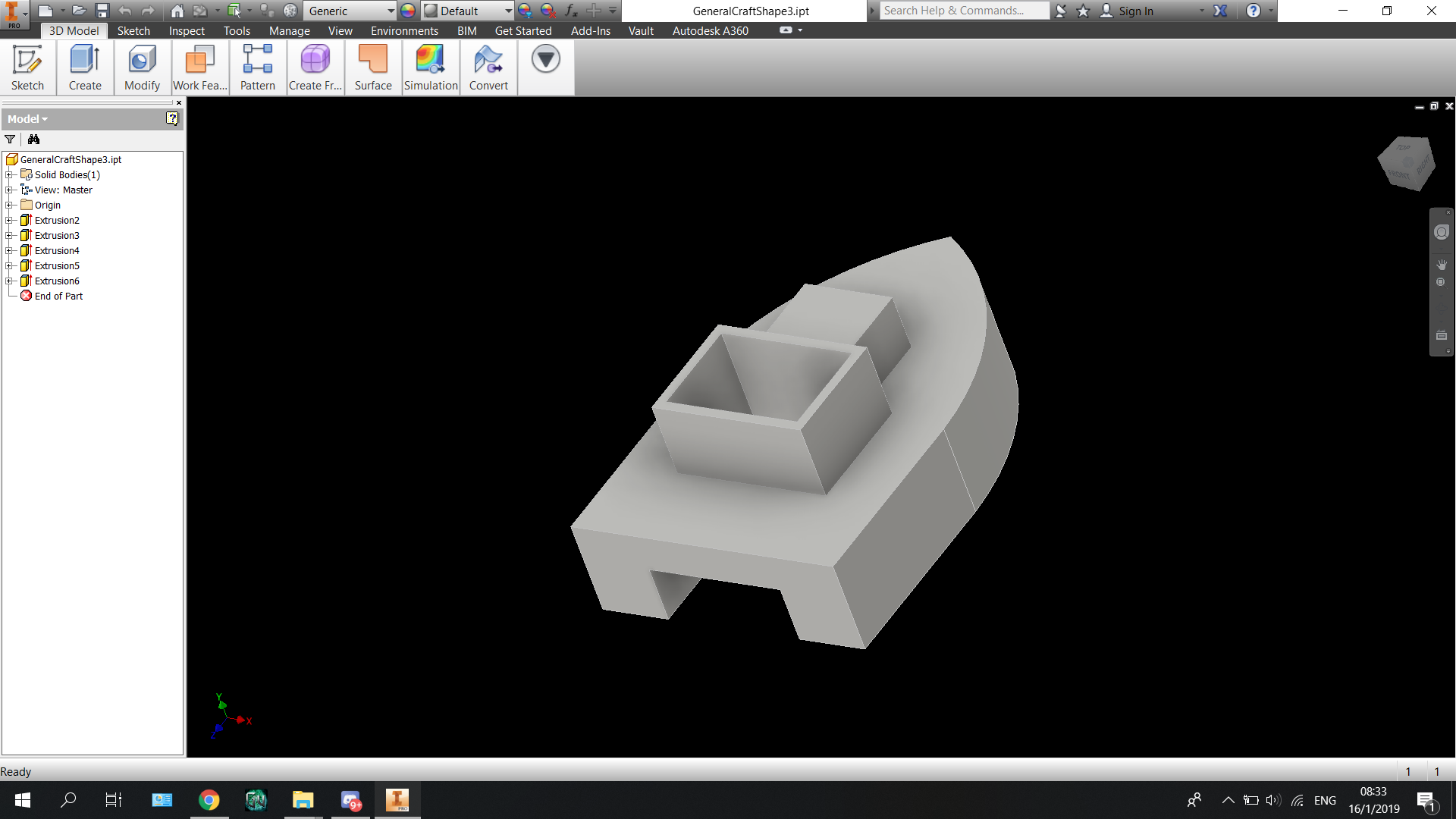

Draft 3

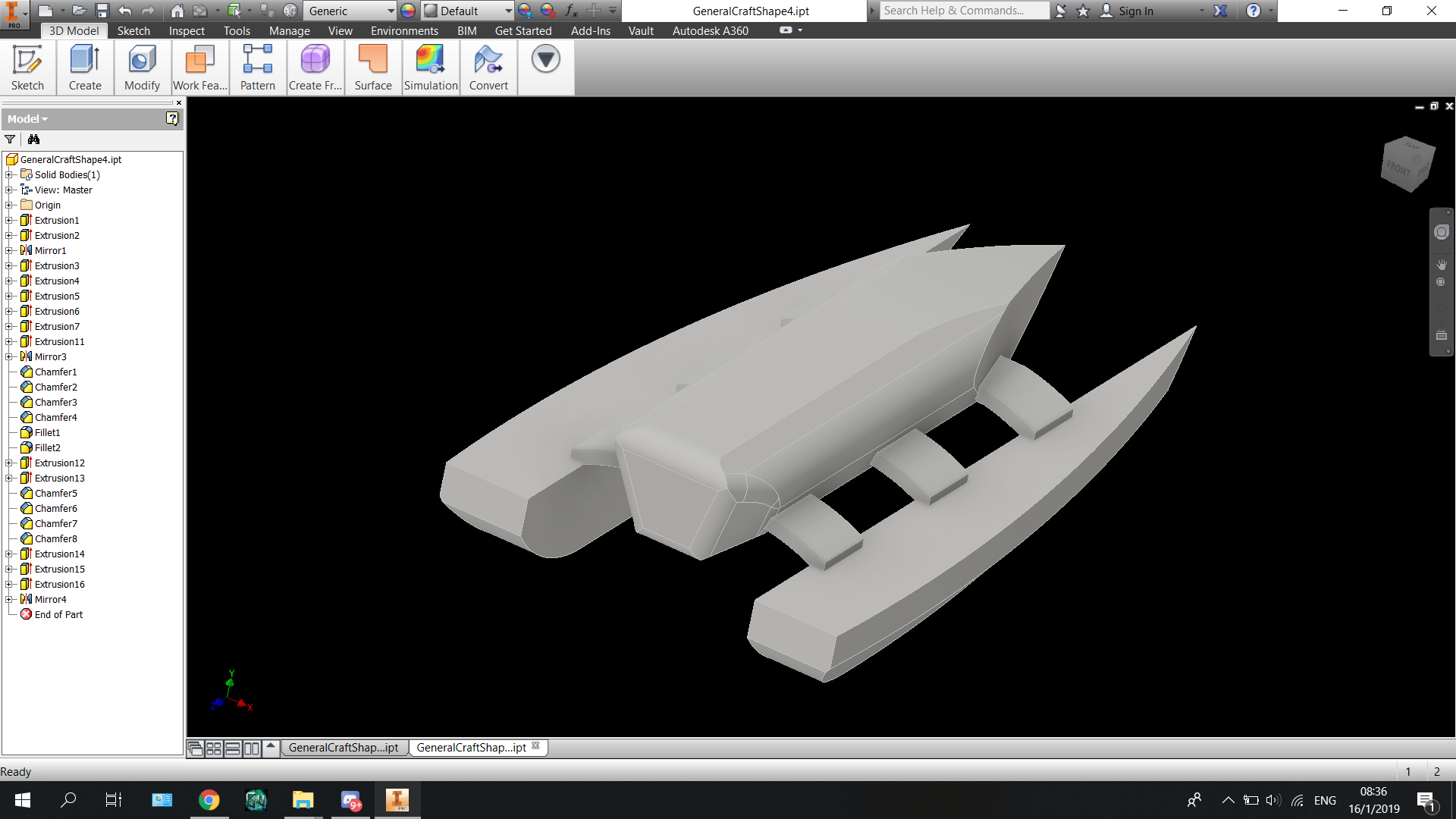

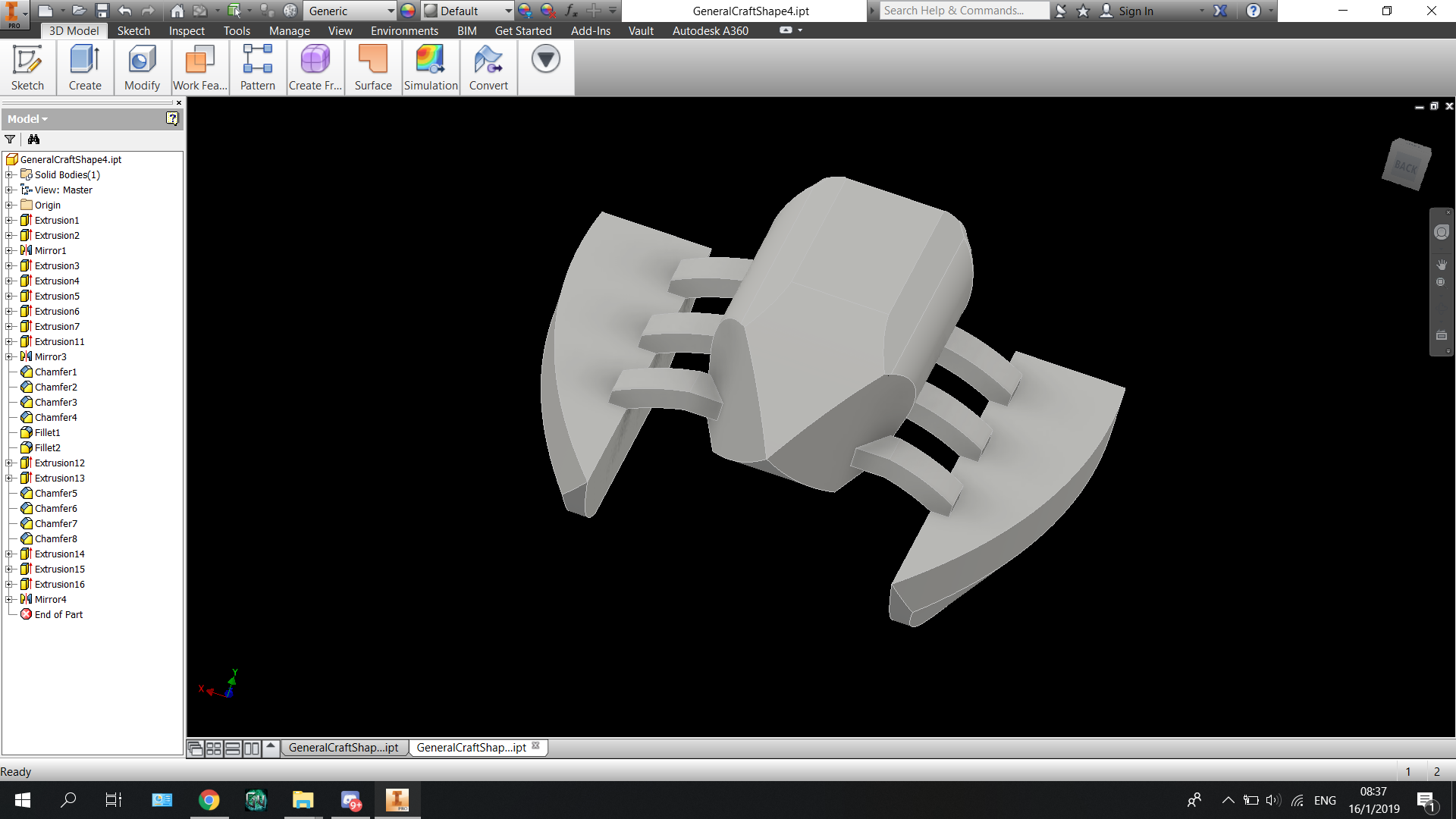

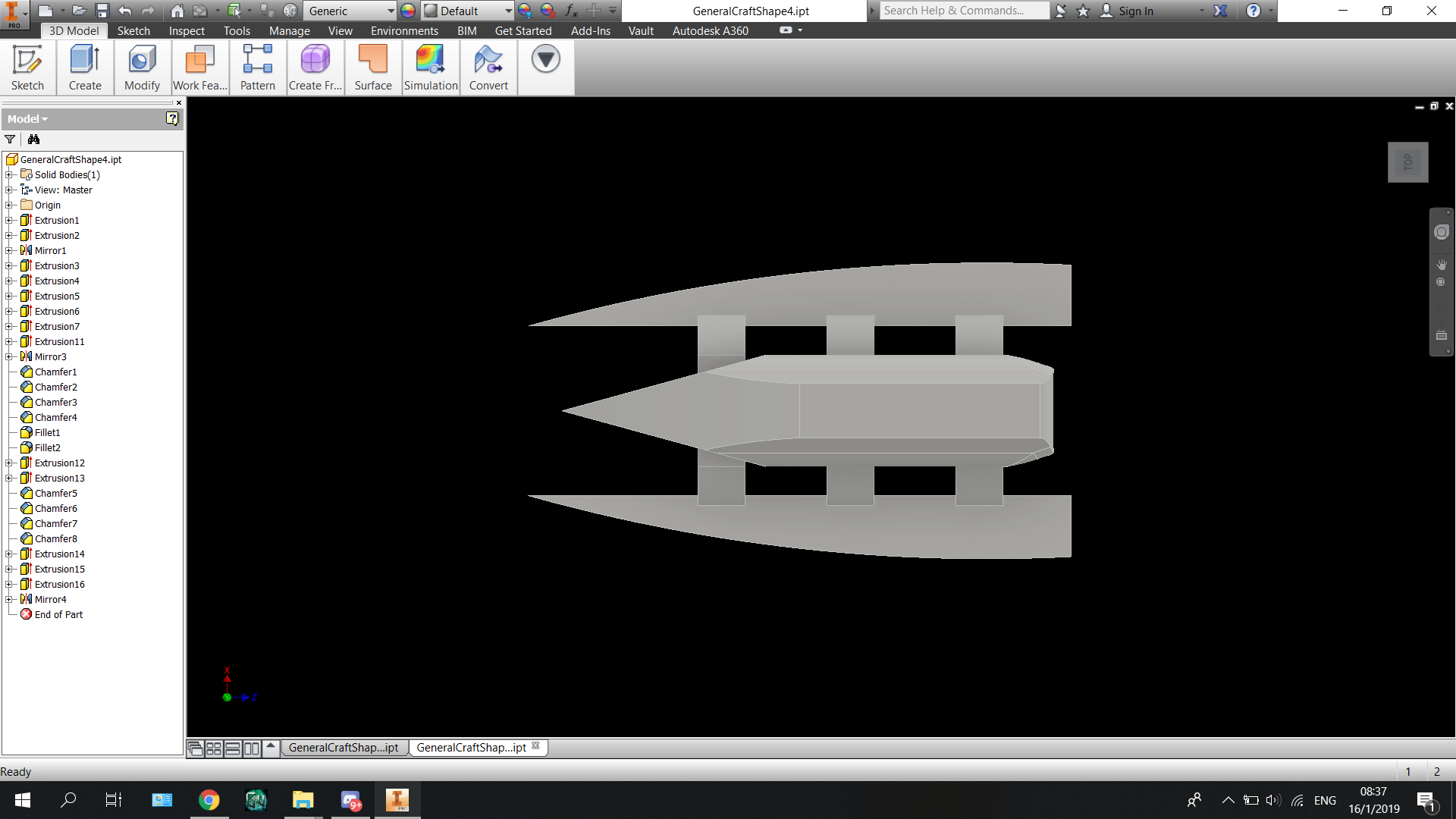

Draft 4

Draft4's design was choosen for the final prototype as it has a streamlined shape and and electronics are a safe height from water level

Changes to idea

    • Due to electronical constraints the craft's original primary function to detect fish has been changed to a dispense fish food and transmit data on the water temperture. Fishes tend to be in warmer areas thus using a temperature sensor as a substitute to find fish may suffice on a DIY level. Link to research on topic:

        http://www.fishresearch.org/sea-surface-temperature/

      Mechanical Design Decisions

        Detailed Information on our mechanical design choices for the craft can be found

      • Here

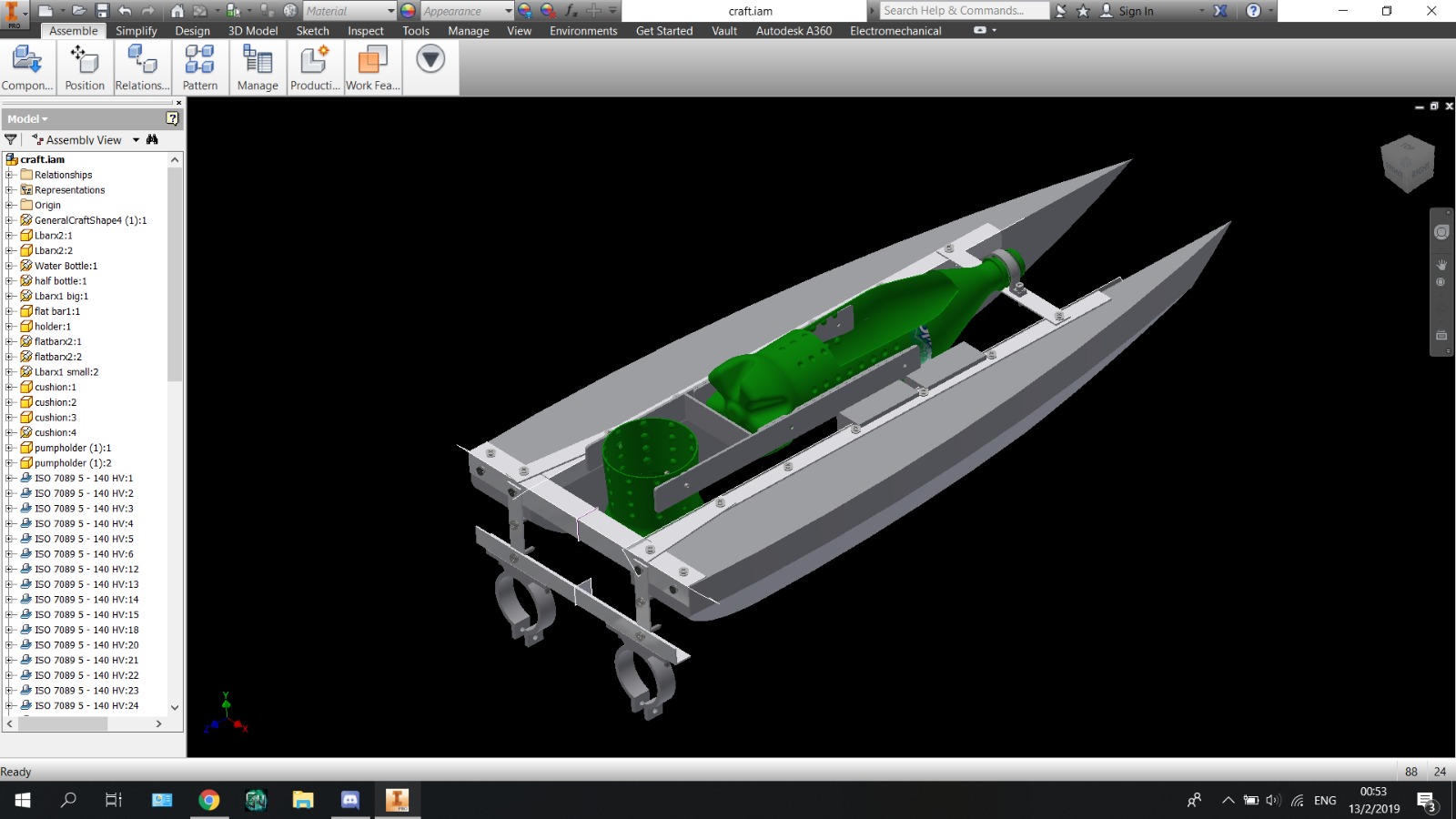

      Inventor Assembly of craft

      Assembly and part files can be found in repository: https://github.com/Spiritizx/oceanman.github.io

      Test Videos

      https://www.youtube.com/watch?v=aDpy7EQICC8

      https://youtu.be/wGnw28ZJOus
